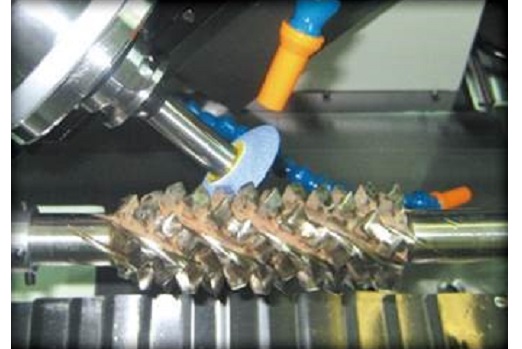

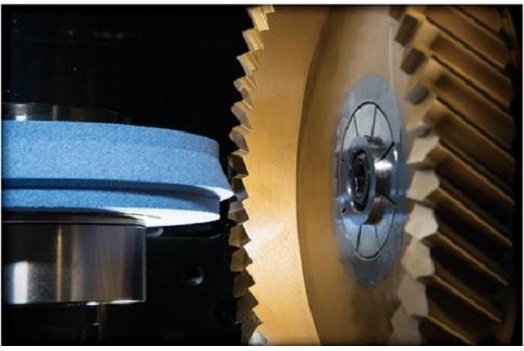

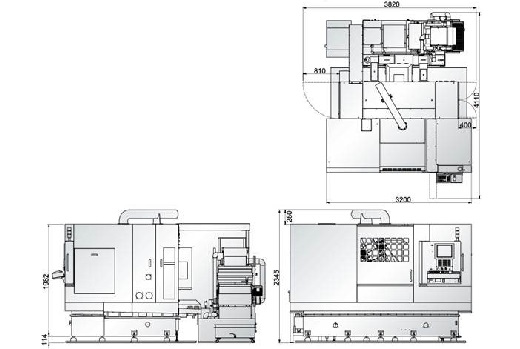

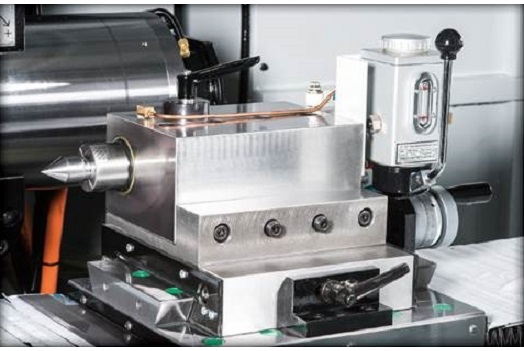

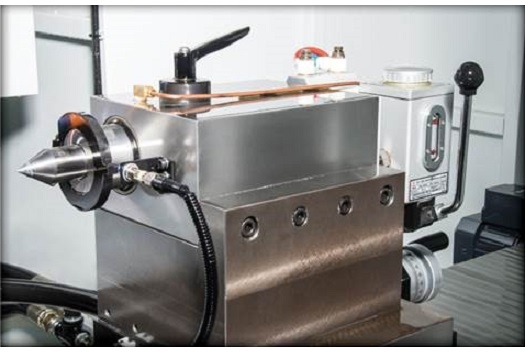

ZHS-3040 can sharpen the blade edges of straight & helical hobs, and also the helical shaper cutter (Opt) and power skiving cutter (Opt). The Matrix Precision-developed intelligent conversations window software is easy for operation.
The hob sharpening machine applies the globally famous FANUC controller,linear motors and direct-drive motors;each axis can run simultaneously to get a high-precision performance.

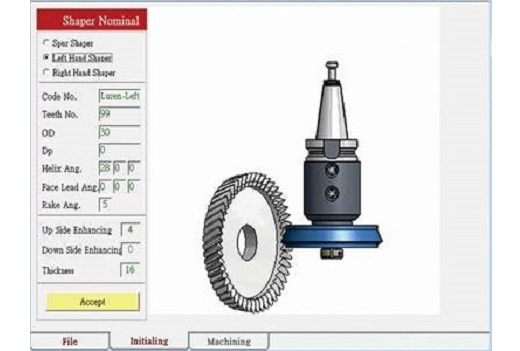

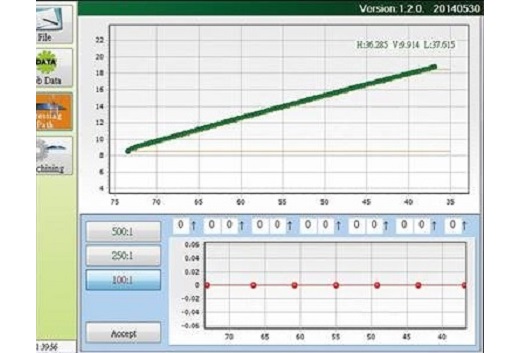

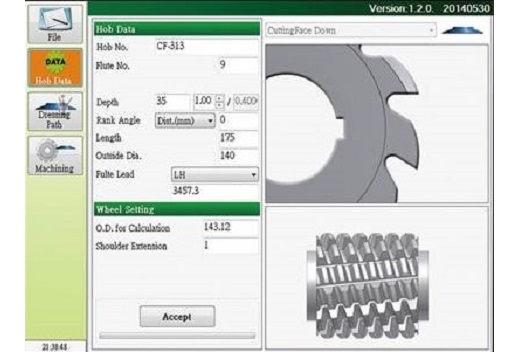

The Matrix Precision-developed intelligent conversations window software supports complete machining procedure. Operator can follow the software instructions to input parameters. After setting up the grinding parameters, system will automatically generate the respective NC program and perform cutting tools sharpening task, which greatly increases the working efficiency.
| MAIN SPECIFICATIONS | ZHS-3040 | |
|---|---|---|
| Min./Max. workpiece outside diameter | 20mm / 250mm | 0.8” / 9.8” |
| Max. length | 300mm | 11.8” |
| Max. grinding depth | 35mm | 1.3” |
| Flute range | 1 ~ 99 | 1 ~ 99 |
| Lead angle range | ±20° ( ≤ ±40°optional) | ±20° ( ≤ ±40°optional) |
| Gash lead range | 1500 ~ ∞ mm(300 ~ ∞ mm optional ) | 59.0” ~ ∞ ”(11.8” ~ ∞ ”optional ) |
| MECHANICAL SPECIFICATIONS | ||
| Min. / Max. distance between centers | 80mm / 550mm | 3.1” / 21.6” |
| Max. axial slide travel (Z axis) | 650mm | 25.5” |
| Max. table load (Workpiece with carrier) | 50kg | 110lb |
| GRINDING WHEEL SPECIFICATIONS | ||
| Min. abrasive grinding wheel root diameter/Max. grinding wheel diameter | 30mm / 125mm | 1.1” / 4.9” |
| Max. grinding wheel thickness | 25mm | 0.9” |
| Max. rpm of grinding spindle | 10000 rpm | 10000 rpm |
| Drive power of grinding spindle | 15kW | 20Hp |
| N-axis | Grinding spindle |
|---|---|
| X-axis | Wheel axial slide |
| Y-axis | Wheel radial slide |
| Z-axis | Workpiece axial slide |
| A-axis | Workpiece indexing |
| B-axis | Wheel swiveling |
| N-axis | Grinding spindle |
