GVC-0500 CNC Continuous Generating Gear Grinding Machine is equipped with the most advanced SIEMENS CNC controller available and the high-precision electronic gear box module supplied by Siemens.

Three Key Features：
Available Ideal for variety workpieces
8-function software, easy-operate interface, just it is grinding export inside

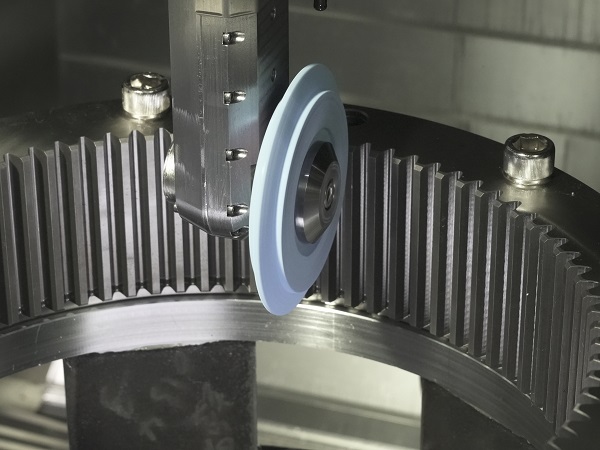

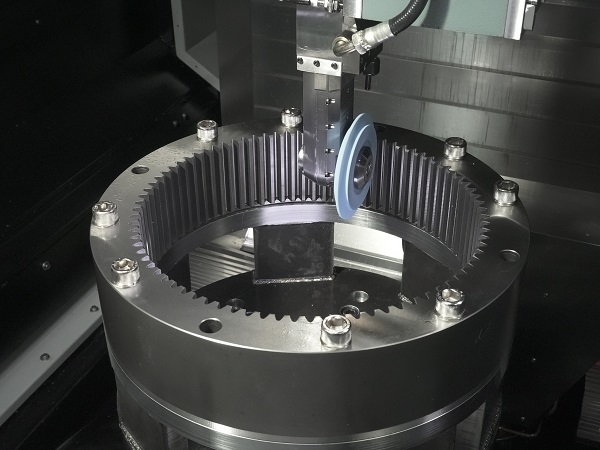

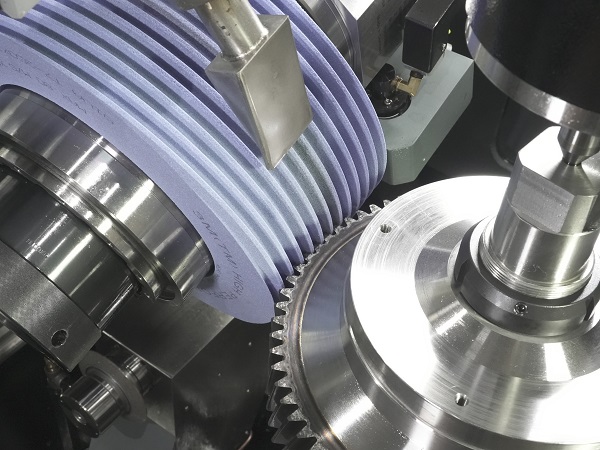

Multi-function machine with 3 changeable machining methods (generating grinding,profile grinding and internal grinding), excellent money-making tool

Profile GrindingGenerating Grinding
Workpiece outside diameter50-500 mm50-500 mm
Max. grinding stroke500 mm500 mm
Work area over table (Min. ~ Max.)300~800 mm300~800 mm
Distance between center above table (Min. ~ Max.)442~1042 mm442~1042 mm
MAIN SPECIFICATIONS
Module0.5~140.5~8
Helix angle±45°±45°
Teeth range9~9989~998
Max. tooth depth30 mm18 mm
GRINDING WHEEL SPECIFICATIONS
Diameter of form wheel/Diameter of worm wheel (Min. ~ Max.)Ø221~400 mmØ221~400 mm
Thickness of form wheel/Thickness of worm wheel (Max.)75 mm160 mm
Drive power of grinding spindle37 kW37 kW
Max. rpm of grinding spindle6000 rpm6000 rpm
TABLE SPECIFICATIONS
Table diameterØ400 mmØ400 mm
Max. table load500 kg500 kg
Table hole (diameter * depth)150 x 500 mm150 x 500 mm
Table of rotation speed (Max.)1000 rpm1000 rpm
DIMENSION & WEIGHT
Space RequirementL 5285 x W 8805 x H 2800 mmL 5285 x W 8805 x H 2800 mm
Weight of basic machine20970 kg20970 kg
